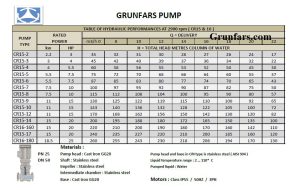

| table of hydraulic performances at 2900 rpm (CR15- CR16) | |||||||||||
| pump type | rated power | Q= DELIVERY | |||||||||
| m3/h 0 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | |||
| kw | hp | H= total head meters column of water | |||||||||
| CR15-2 | 2.2 | 3 | 35 | 32 | 31 | 30 | 28 | 27 | 26 | 24 | 17 |
| CR15-3 | 3 | 4 | 45 | 42 | 40 | 39 | 37 | 36 | 34 | 32 | 22 |
| CR15-4 | 4 | 5.5 | 60 | 58 | 56 | 55 | 53 | 52 | 50 | 45 | 30 |
| CR15-5 | 5.5 | 7.5 | 75 | 72 | 70 | 68 | 66 | 64 | 60 | 55 | 37 |
| CR15-6 | 5.5 | 7.5 | 87 | 85 | 83 | 80 | 7 | 74 | 70 | 65 | 43 |
| CR15-7 | 7.5 | 10 | 100 | 97 | 95 | 92 | 90 | 87 | 82 | 75 | 50 |
| CR15-8 | 7.5 | 10 | 115 | 112 | 108 | 104 | 100 | 95 | 90 | 80 | 57 |
| CR15-9 | 11 | 15 | 130 | 125 | 122 | 119 | 115 | 110 | 100 | 92 | 65 |
| CR15-10 | 11 | 15 | 143 | 140 | 136 | 132 | 128 | 22 | 105 | 100 | 72 |
| CR15-12 | 11 | 15 | 170 | 168 | 162 | 156 | 150 | 142 | 130 | 120 | 82 |
| CR15-14 | 15 | 20 | 200 | 195 | 188 | 180 | 172 | 165 | 150 | 135 | 100 |
| CR15-16 | 15 | 20 | 220 | 210 | 200 | 190 | 180 | 170 | 160 | 142 | 110 |
| CR15-17 | 15 | 20 | 240 | 235 | 227 | 220 | 210 | 200 | 185 | 160 | 120 |
| CR15-18 | 18.5 | 25 | 260 | 255 | 243 | 230 | 218 | 206 | 194 | 170 | 130 |
