پمپ cr10 از برند گرانفارس است و از سری پمپ های طبقاتی است.

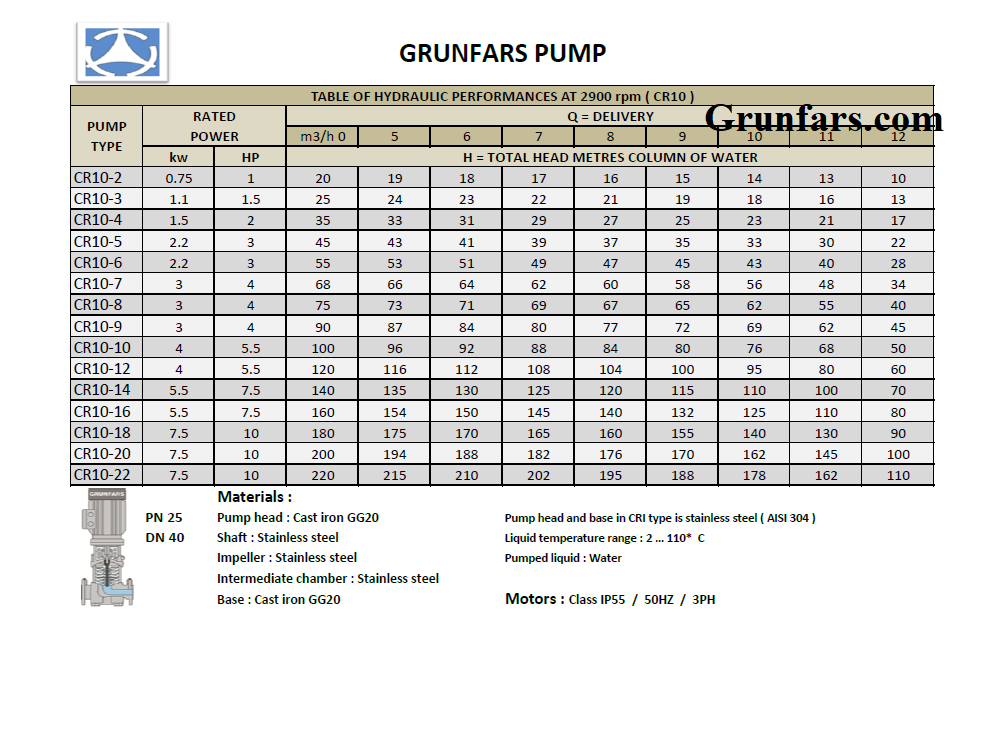

| table of hydraulic performances at 2900 rpm (CR5) | |||||||||||
| pump type | rated power | Q= DELIVERY | |||||||||
| m3/h 0 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| kw | hp | H= total head meters column of water | |||||||||
| CR10-2 | 0.75 | 1 | 20 | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 10 |
| CR10-3 | 1.1 | 1.5 | 25 | 24 | 23 | 22 | 21 | 19 | 18 | 16 | 13 |
| CR10-4 | 1.5 | 2 | 35 | 33 | 31 | 29 | 27 | 25 | 23 | 21 | 17 |
| CR10-5 | 2.2 | 3 | 45 | 43 | 41 | 39 | 37 | 35 | 33 | 30 | 22 |
| CR10-6 | 2.2 | 3 | 55 | 53 | 51 | 49 | 47 | 45 | 43 | 40 | 28 |
| CR10-7 | 3 | 4 | 68 | 66 | 64 | 62 | 60 | 58 | 56 | 48 | 34 |
| CR10-8 | 3 | 4 | 75 | 73 | 71 | 69 | 67 | 65 | 62 | 55 | 40 |
| CR10-9 | 3 | 4 | 90 | 87 | 84 | 800 | 77 | 72 | 69 | 62 | 45 |
| CR10-10 | 4 | 5.5 | 100 | 96 | 92 | 88 | 84 | 80 | 76 | 68 | 50 |
| CR10-12 | 4 | 5.5 | 120 | 116 | 112 | 108 | 104 | 100 | 95 | 80 | 60 |
| CR10-14 | 5.5 | 7.5 | 140 | 135 | 130 | 125 | 120 | 115 | 110 | 100 | 70 |
| CR10-16 | 5.5 | 7.5 | 160 | 154 | 150 | 145 | 140 | 132 | 125 | 110 | 80 |
| CR10-18 | 7.5 | 10 | 180 | 175 | 170 | 165 | 160 | 155 | 140 | 130 | 90 |
| CR10-20 | 7.5 | 10 | 200 | 194 | 188 | 182 | 176 | 170 | 162 | 145 | 100 |
| CR10-22 | 7.5 | 10 | 220 | 215 | 210 | 202 | 195 | 188 | 178 | 162 | 110 |
جدول مشخصات پمپ cr10
